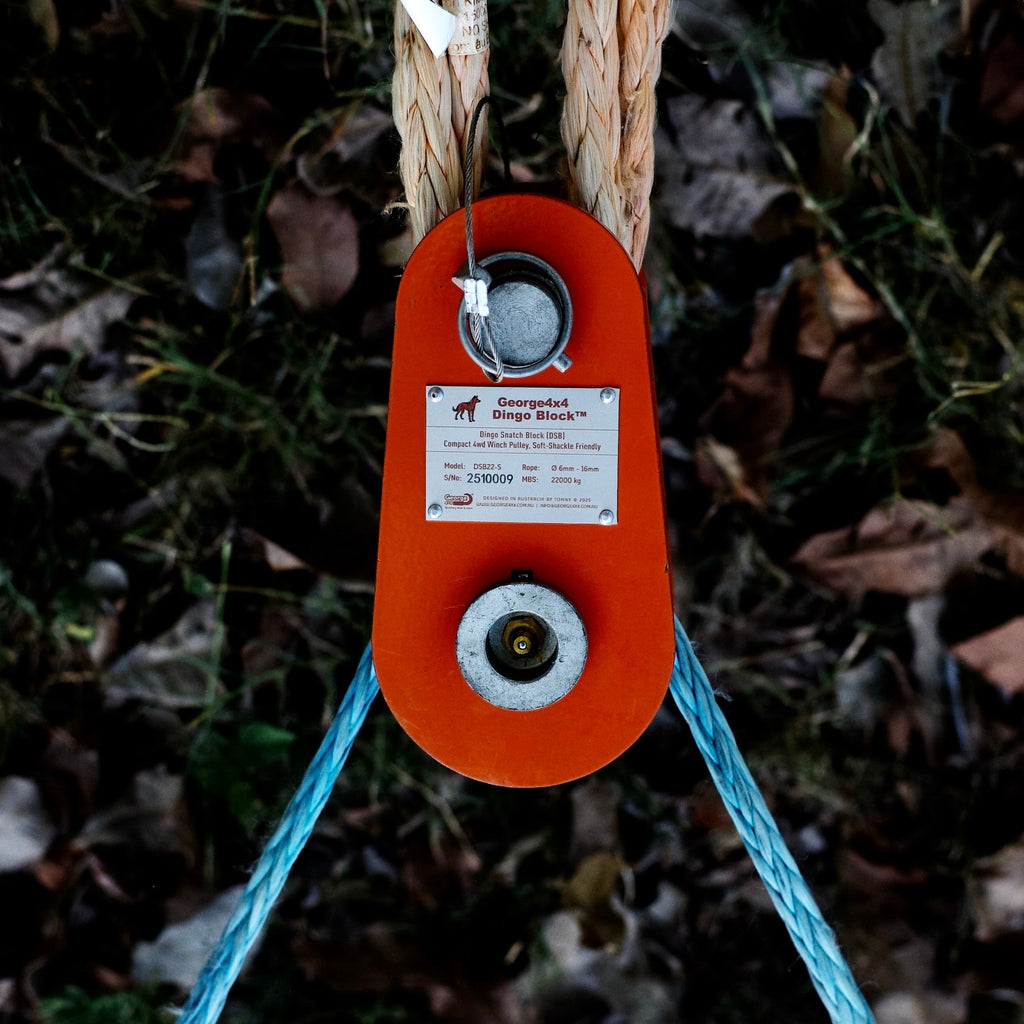

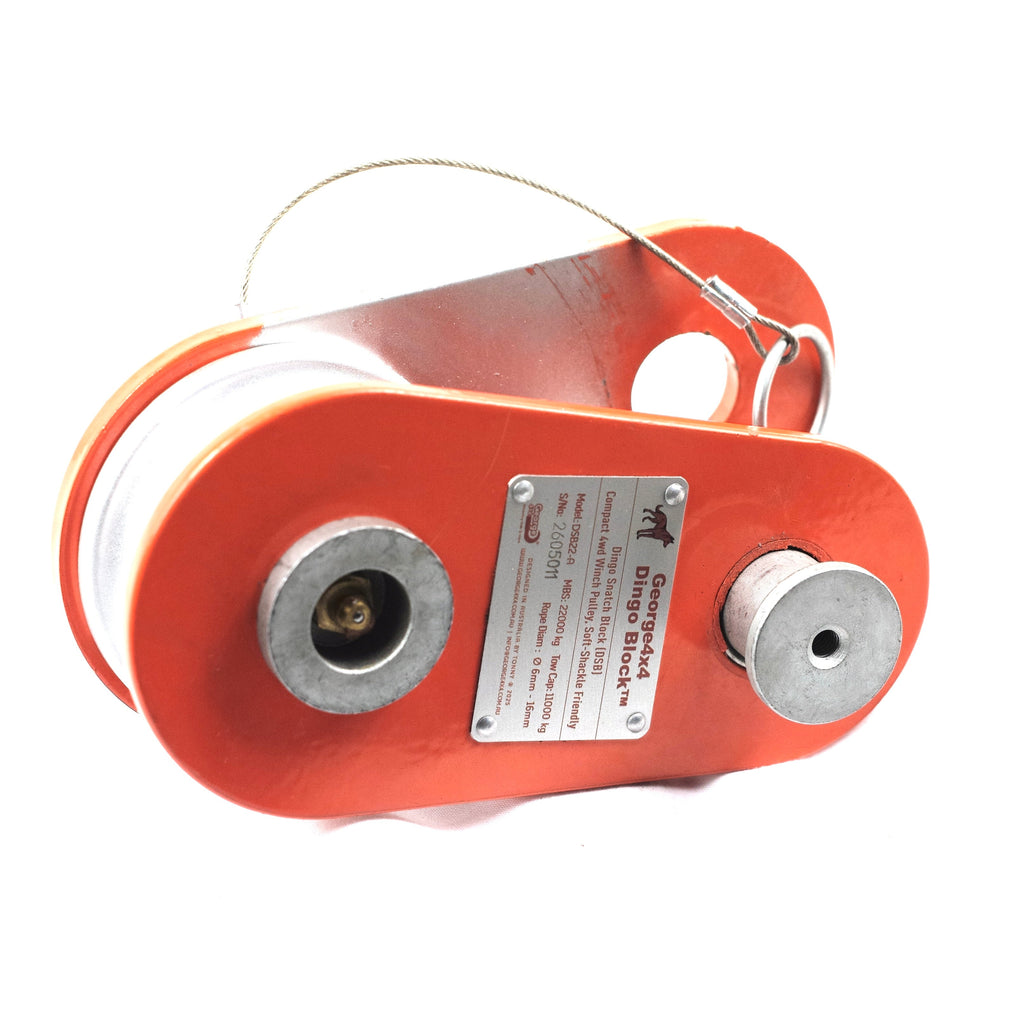

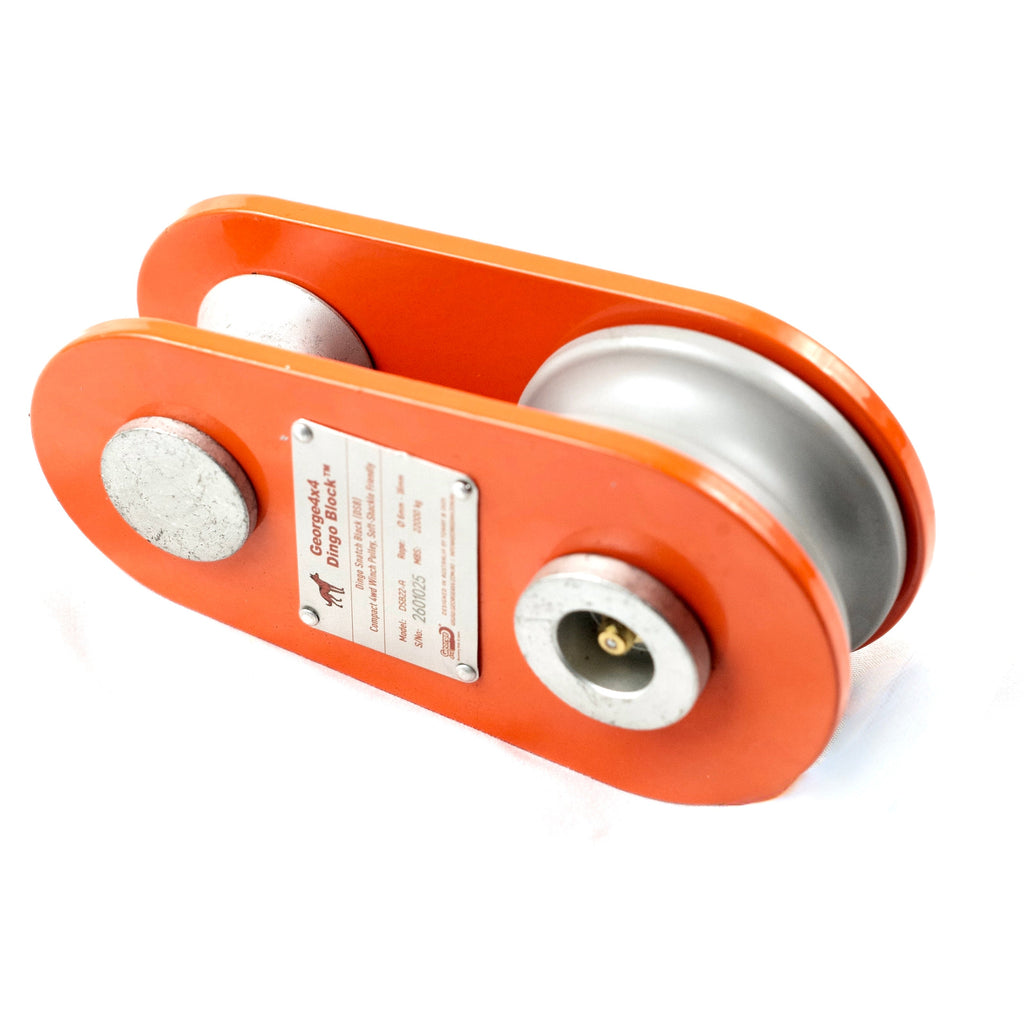

The Dingo Block is the compact alternative to a traditional steel snatch block: a CNC-machined aluminium body around a rotating 75 mm sheave, rated to a 22,000 kg minimum breaking force and tested to 24,000 kg. The V3 adds a captive pin, so the one part you used to lose in the mud now stays on the block.
Why a rotating block instead of a recovery ring
- The sheave turns with the rope on a greased bush bearing – less friction, less heat on long or repeated pulls, longer synthetic rope life.

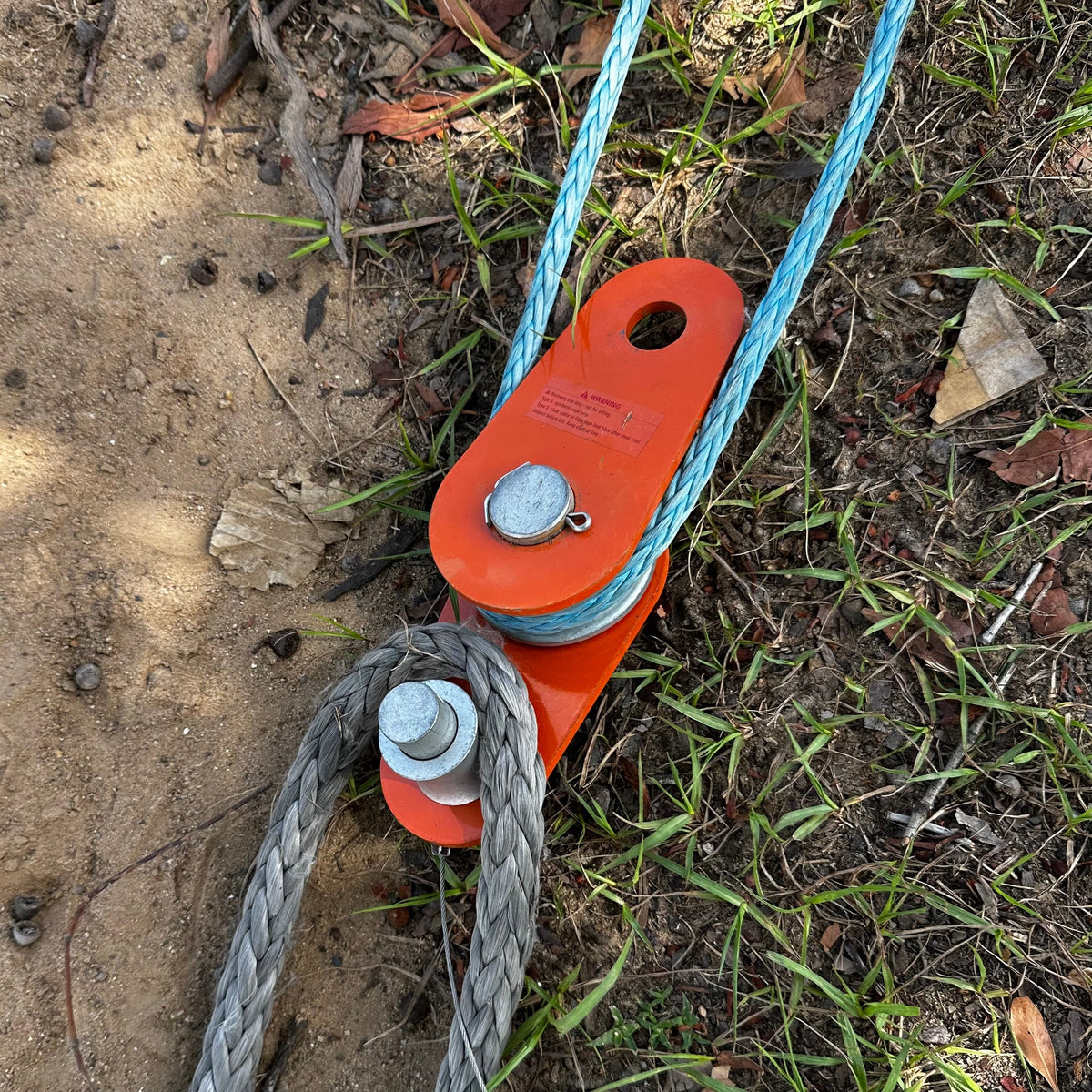

- Enclosed sheave helps keep the rope captured when the angle changes or tension drops.

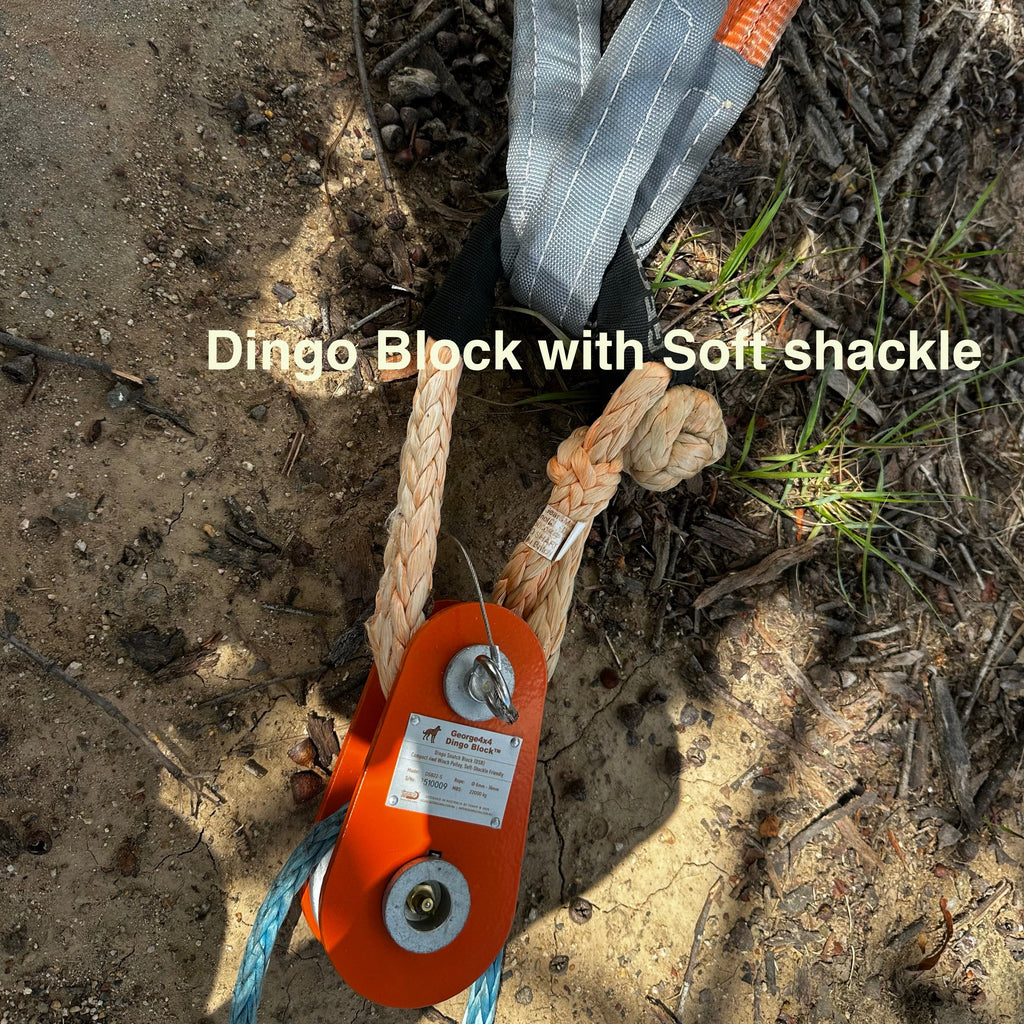

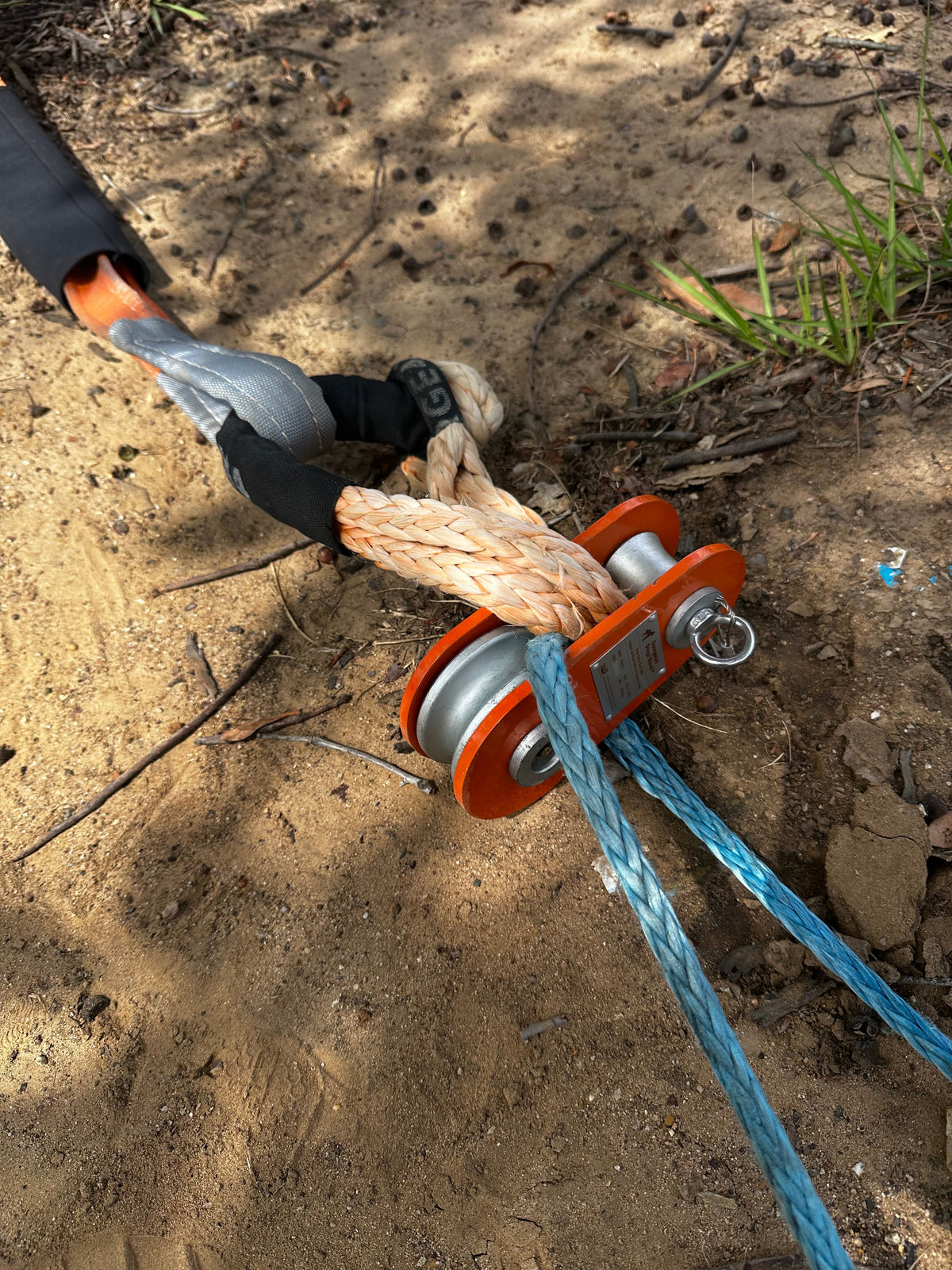

- Connects directly to a soft shackle – no bow shackle needed, no sharp rope-contact edges.
- Small enough to live in the glovebox recovery kit; 1.66 kg for the aluminium-sheave version.
Choose your sheave
- Aluminium sheave – synthetic winch rope only. 1.66 kg.

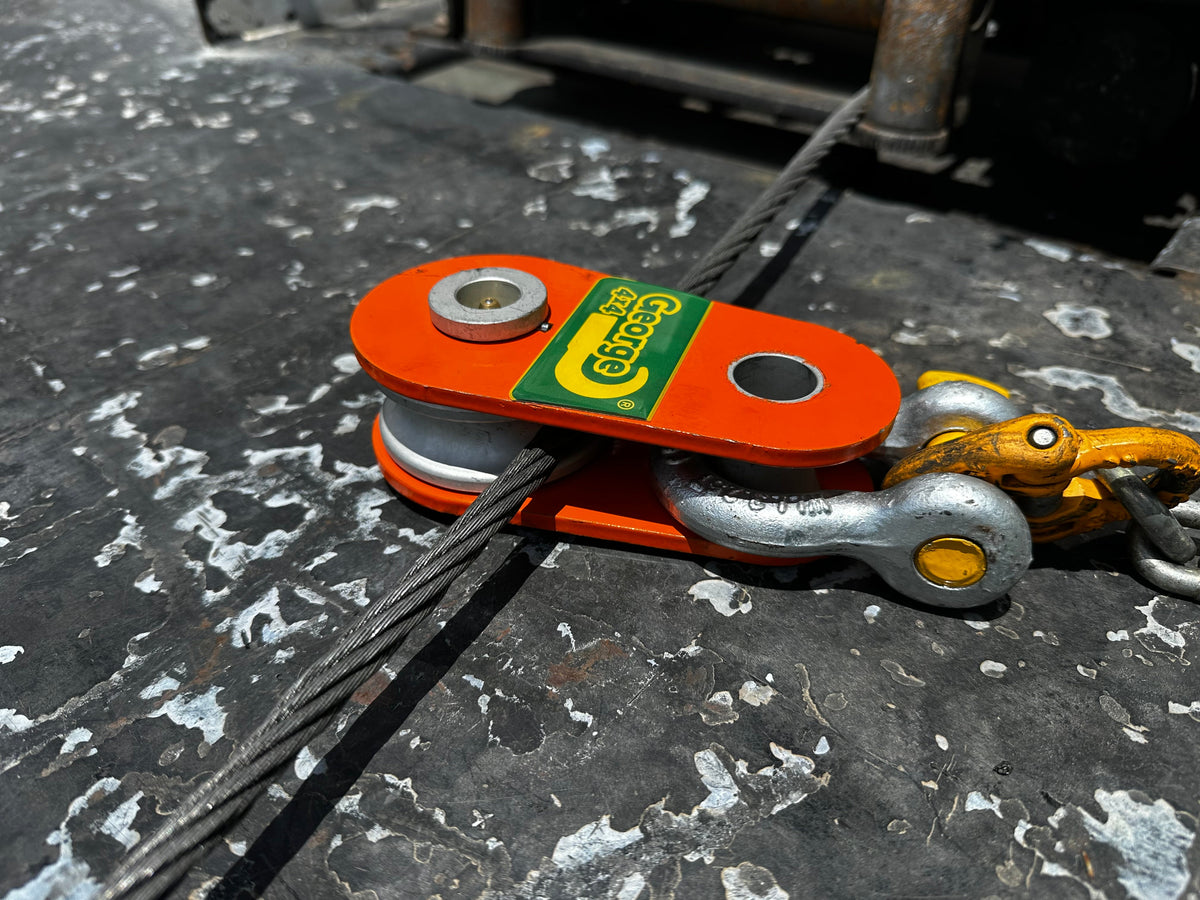

- Steel sheave – steel cable or synthetic rope. 2.16 kg.
Once a steel sheave has been used with steel cable, don't go back to synthetic rope on it – embedded wire particles will chew the fibre.
Specifications
| Minimum breaking force | 22,000 kg (tested to 24,000 kg) |
| Sheave diameter | 75 mm |
| Rope compatibility | 6–18 mm synthetic rope (steel cable with steel sheave) |

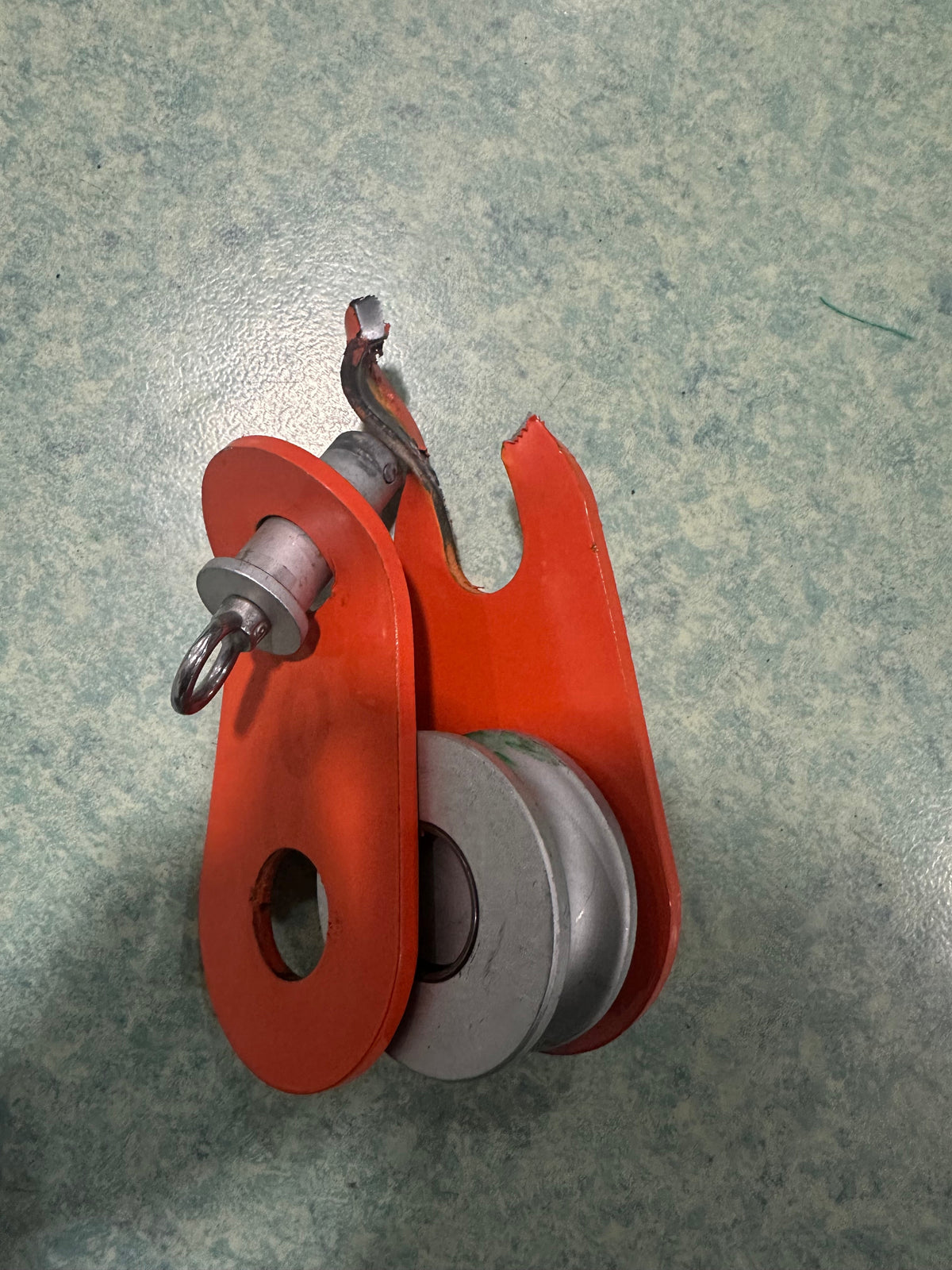

| Pin | Captive |
| Body | CNC aluminium |
| Designed in | Australia |

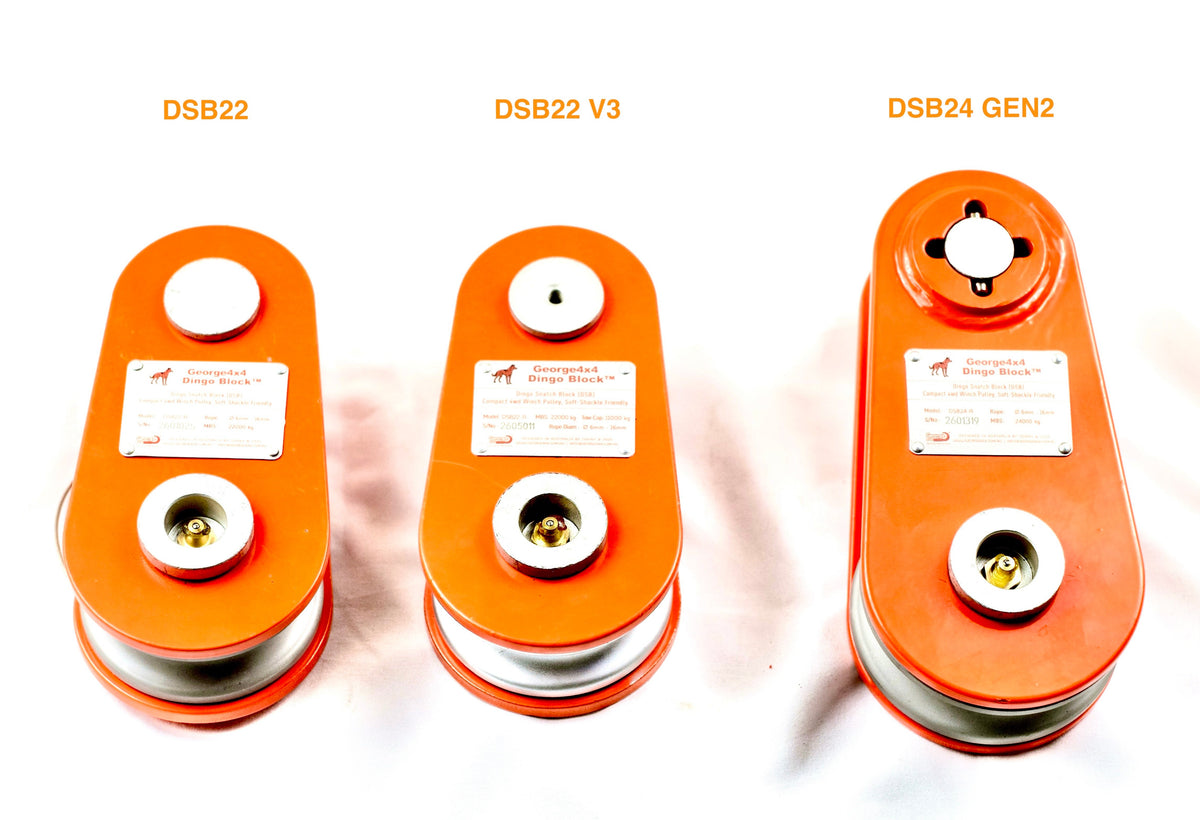

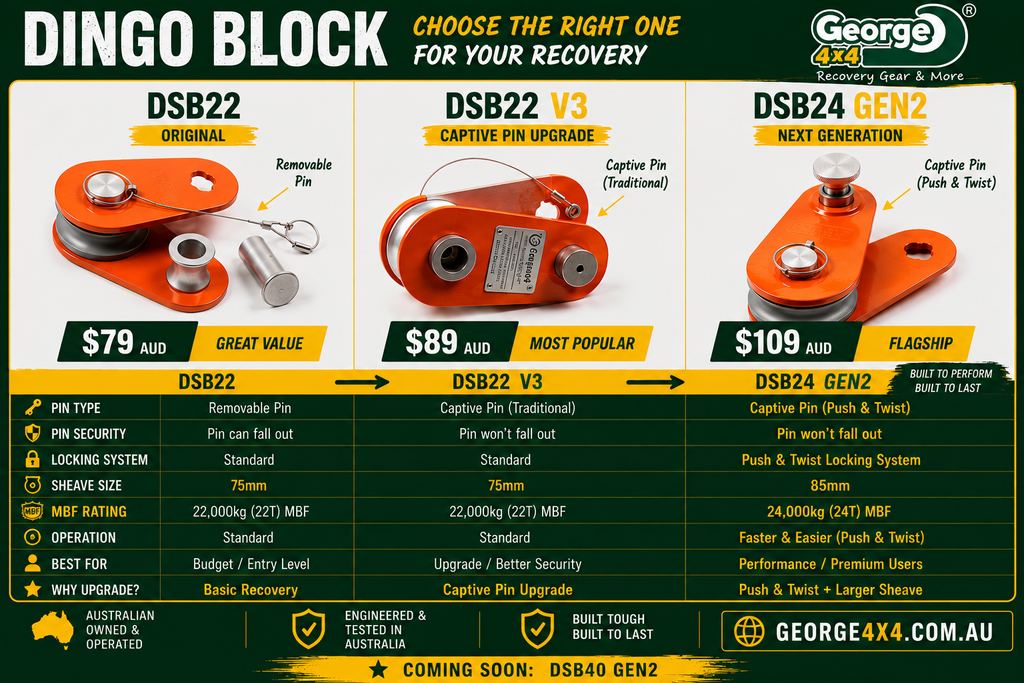

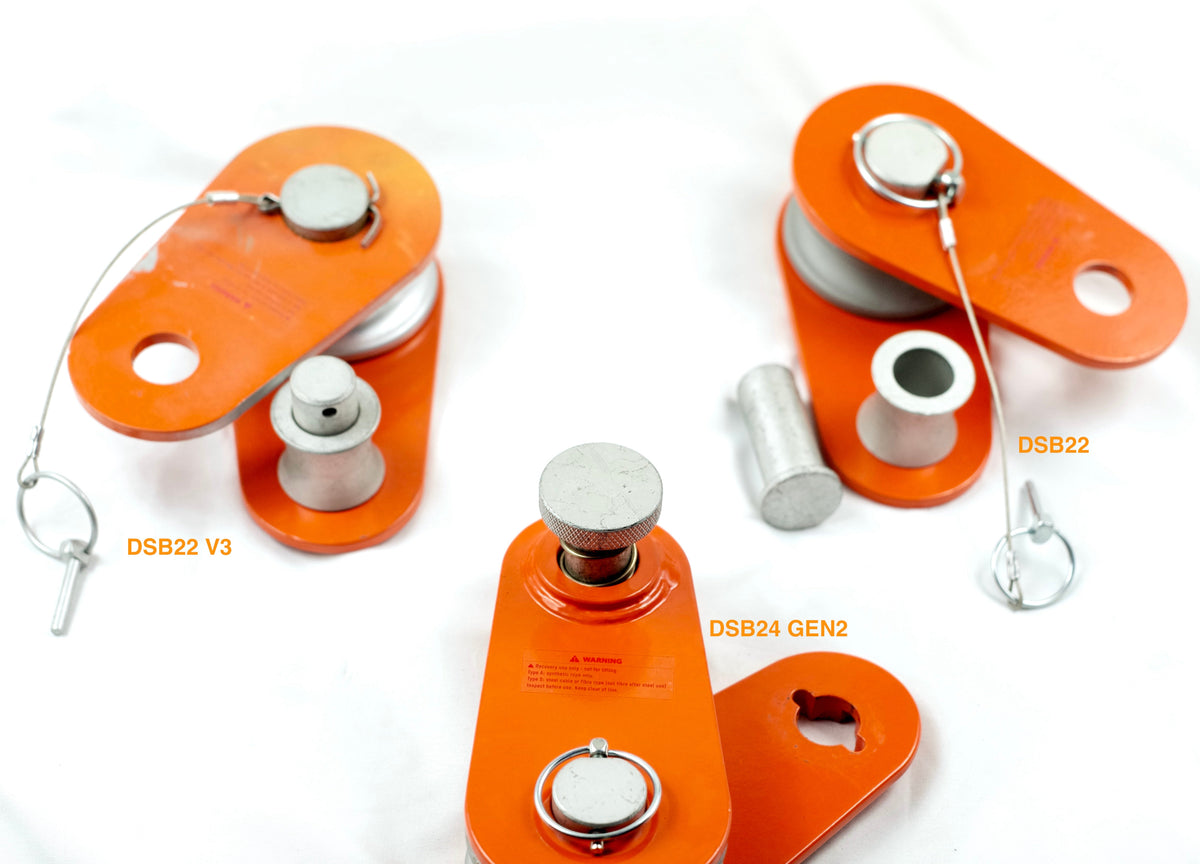

Want the larger 85 mm sheave and push-and-twist pin? See the DSB24 GEN2.
Manufacturer & product safety
Australian brand/supplier: George4x4 / George Lifting Pty Ltd, Unit 2, 15 Overlord Place, Acacia Ridge QLD 4110, Australia; sales@george4x4.com.au. Confirm original manufacturer for the precise variant.
Safety: Recovery equipment involves significant stored energy. Breaking load and WLL are not interchangeable; use only according to confirmed product-specific safety instructions.
